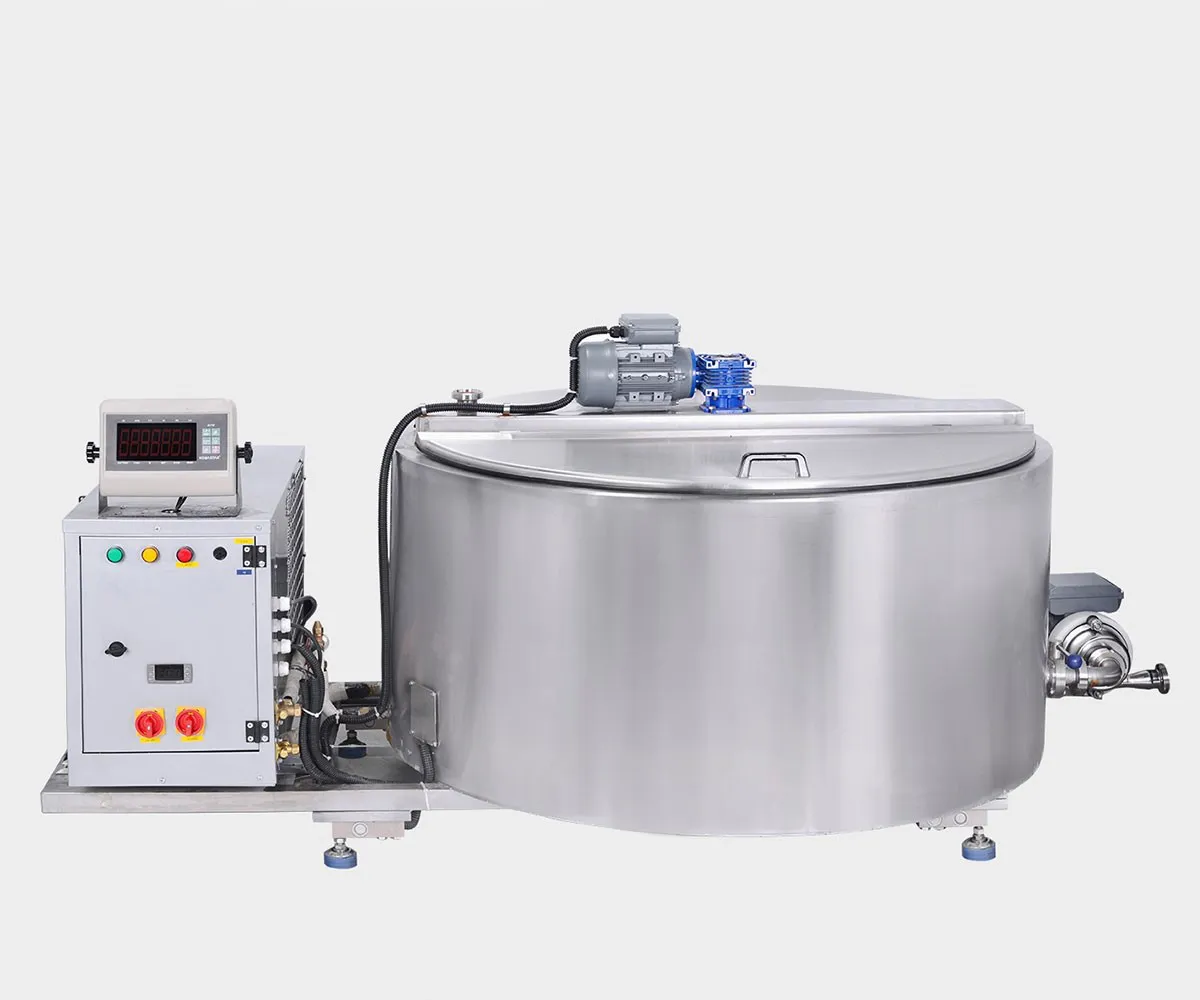

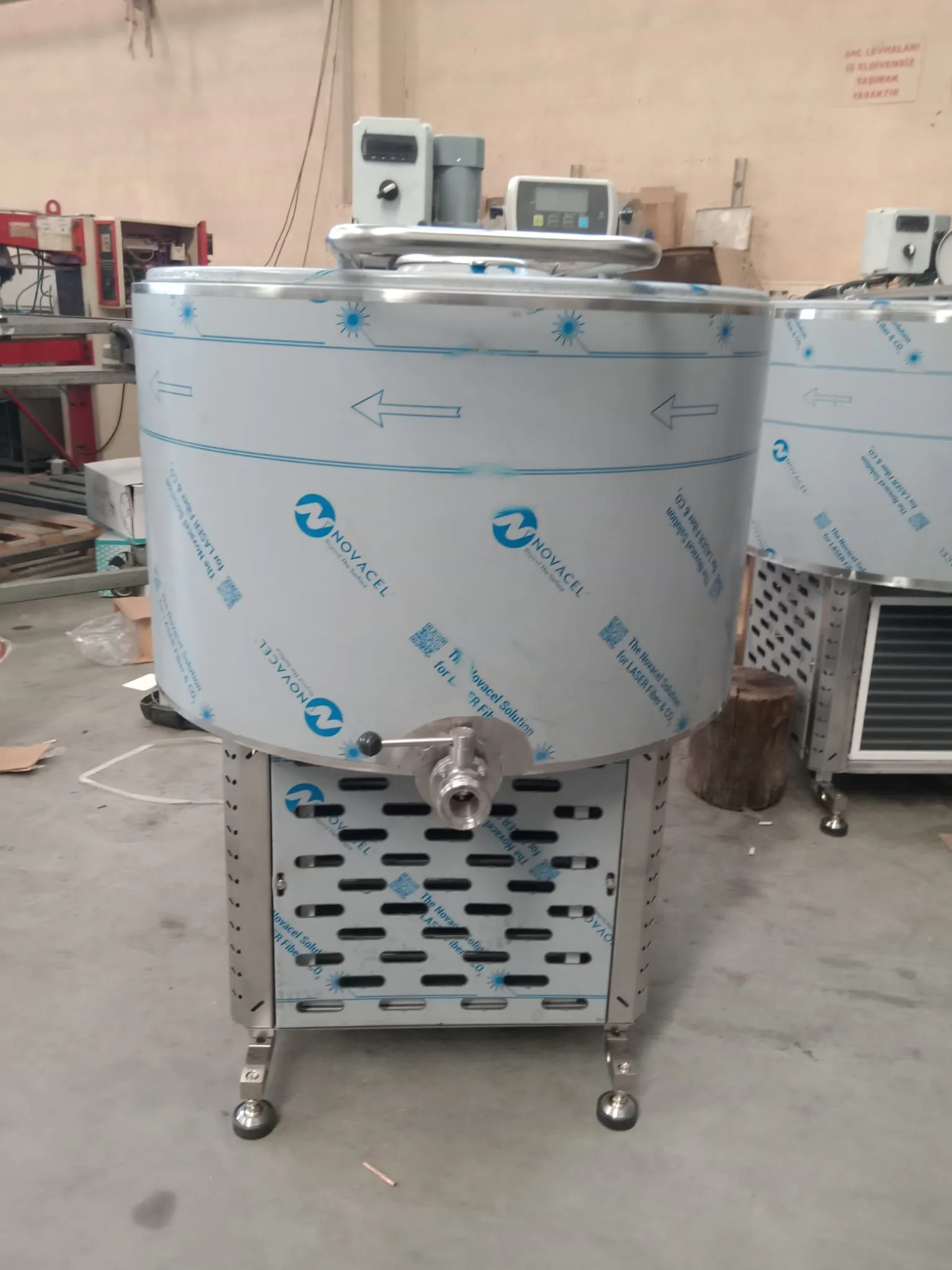

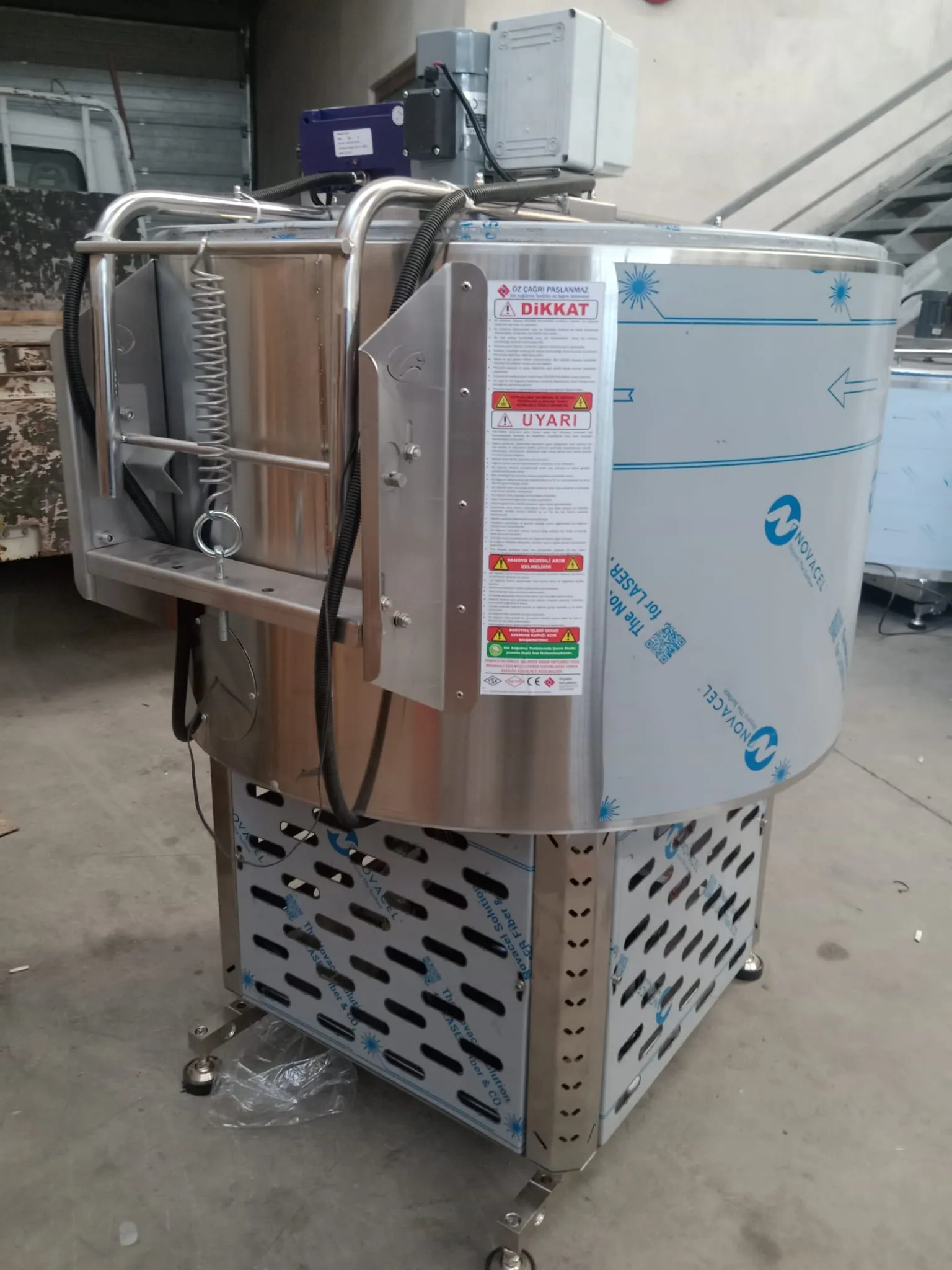

Product Code: TAC-201

Material: The entire tank is manufactured from AISI 304 stainless steel.

Inner tank sheet thickness: 1.5 mm.

Outer wall sheet thickness: 1.0 mm.

The tank is equipped with a fully openable top lid.

Insulation: Made with 40 mm environmentally friendly polyurethane foam.

The tank cooling system is equipped with an evaporator (roll-bond) system.

Temperature measurement is provided by a high-precision digital thermometer.

The tank operates with a fully automatic system.

The control panel is designed to be simple and user-friendly.

At an ambient temperature of 32°C, it is equipped with a fan-cooled condenser capable of cooling from +35°C to +4°C in less than 3 hours.

Refrigerant gas: R404A.

Electrical system: 220V single-phase or optional 380V three-phase.

Phase protection relays are available against failures caused by voltage drops and surges.

Equipped with a 3/4 HP compressor.

The milk discharge valve is a DN40 chrome valve.

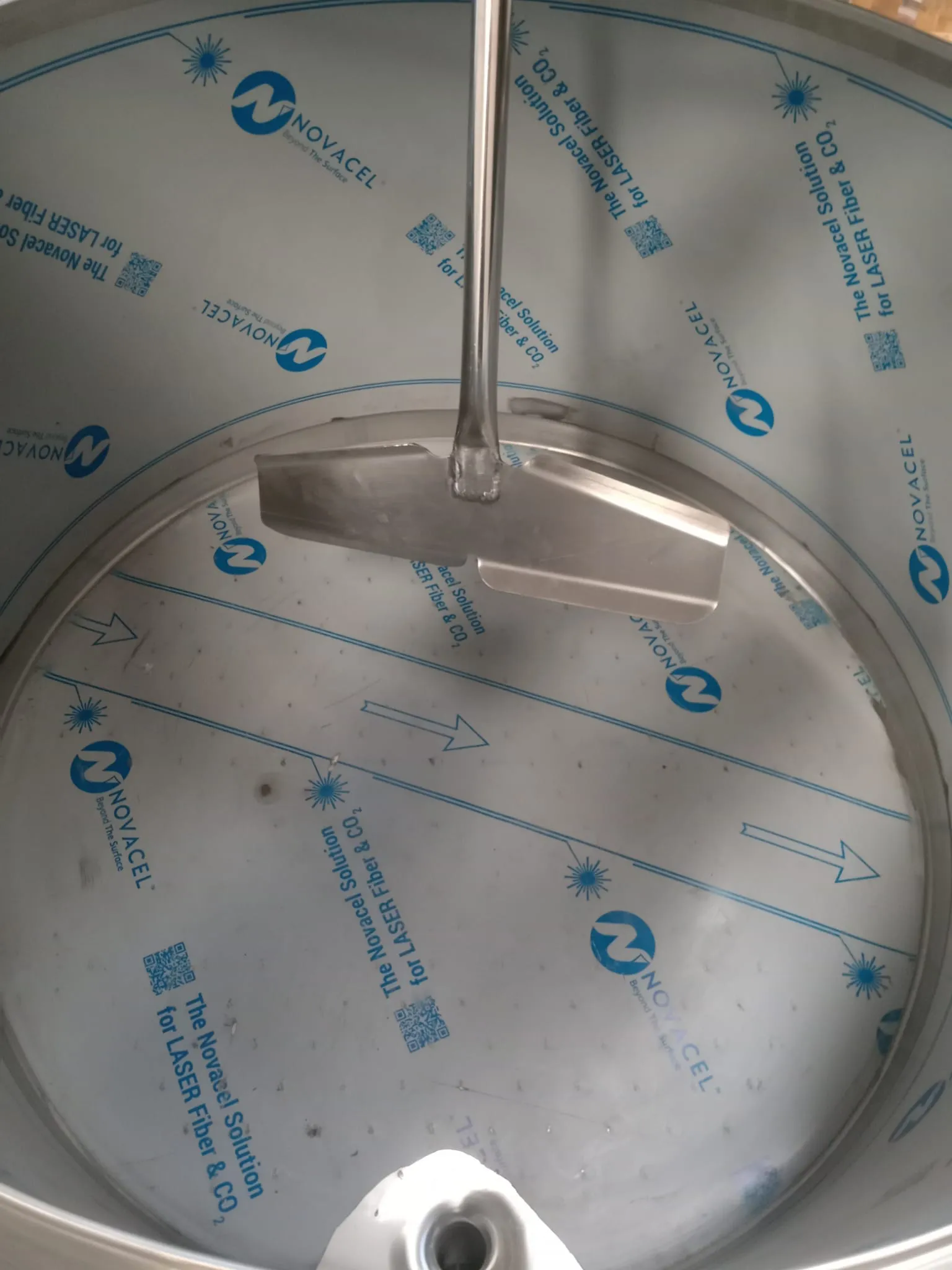

Equipped with a 40 Watt agitator/mixer.

Equipped with a transfer pump with a capacity of 6 tons per hour.

The weighing system is equipped with an electronic scale.
