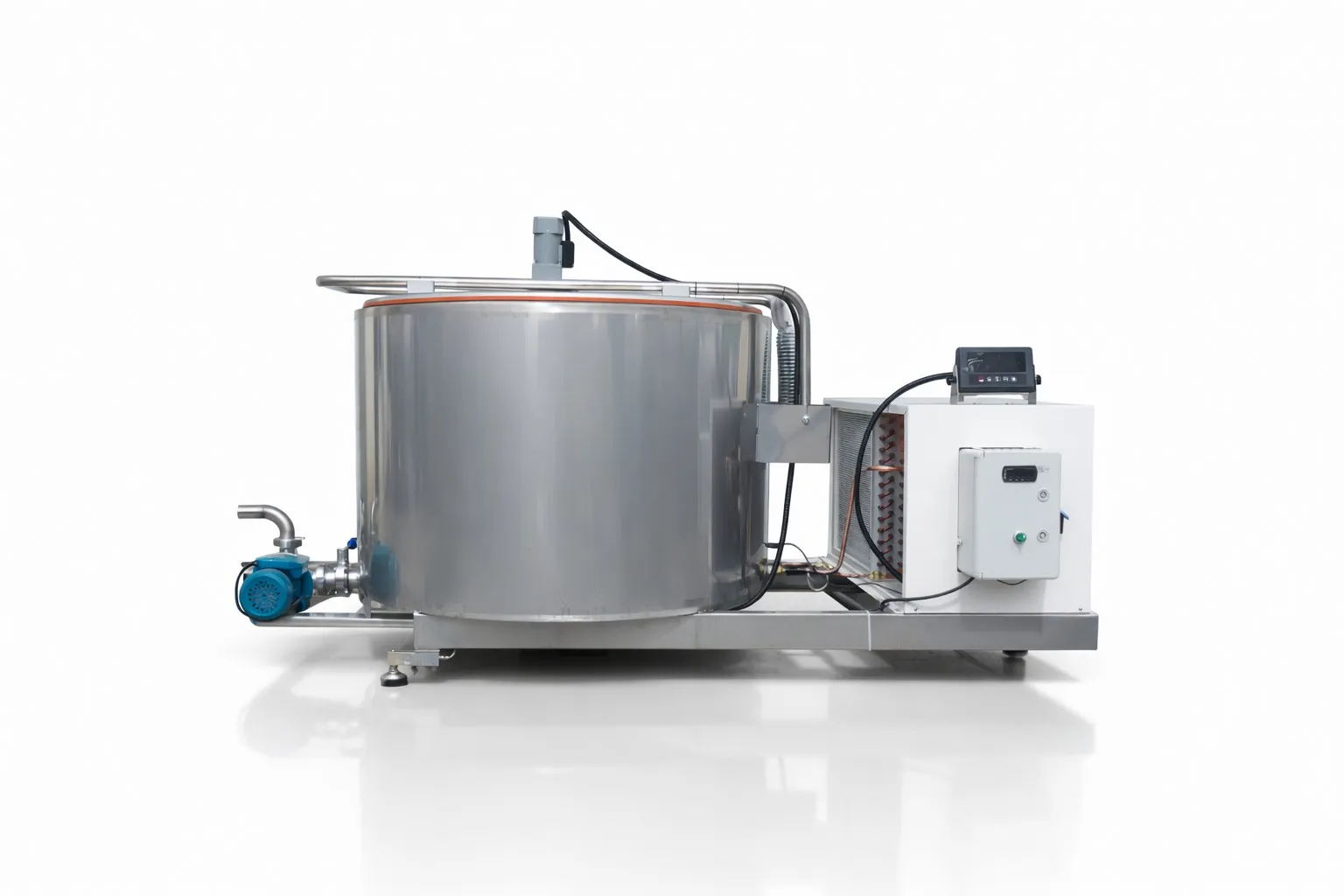

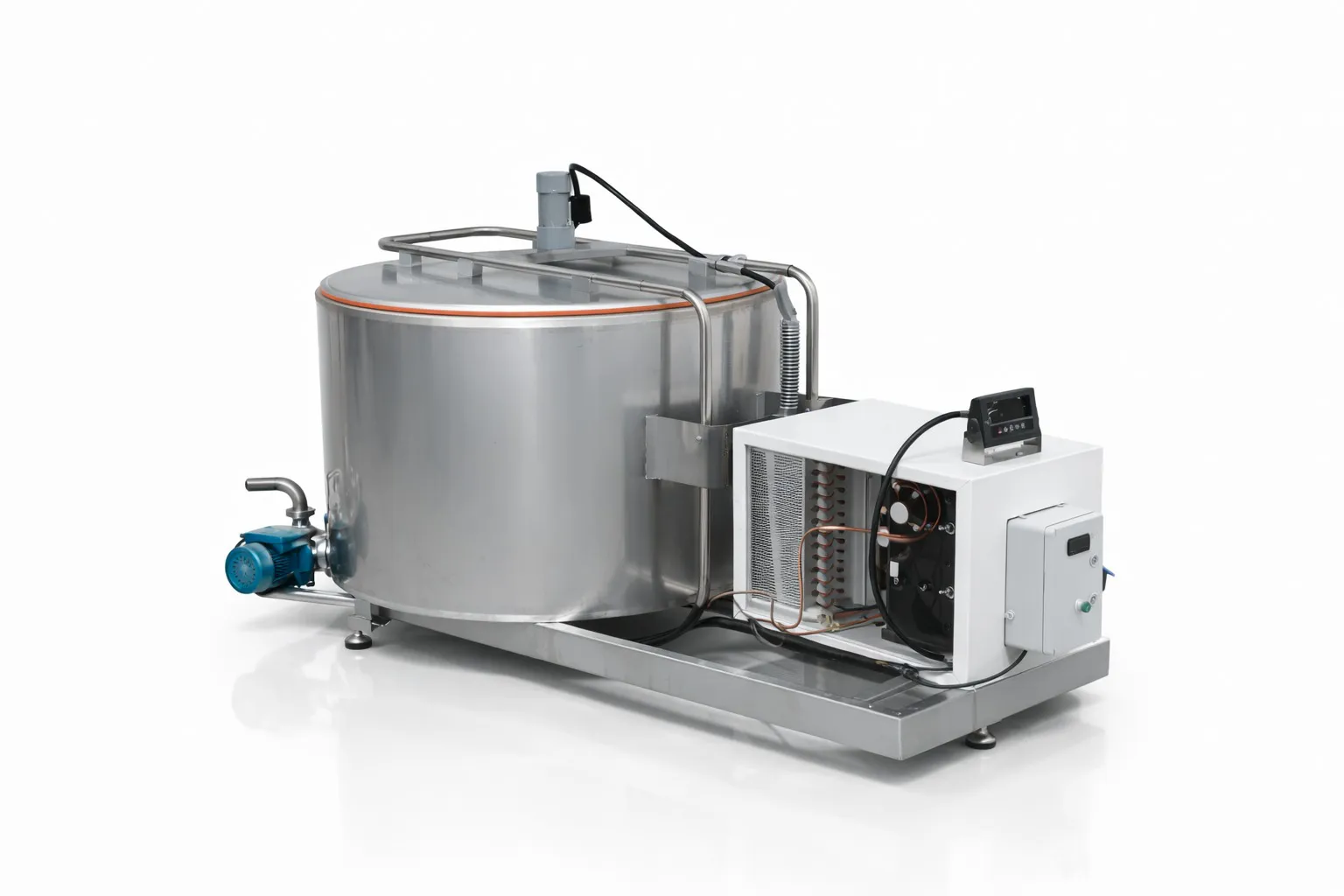

High-durability equipment built in our own factory, designed for industrial livestock facilities.
Product Code: TAC207
Material: The entire tank is manufactured from AISI 304 stainless steel.
Inner tank sheet thickness: 2 mm.
Outer wall sheet thickness: 1.2 mm.
Insulation: Made with 40 mm environmentally friendly polyurethane foam.
The tank cooling system is equipped with an evaporator (roll-bond) system.
Temperature measurement is provided by a high-precision digital thermometer.
The tank operates with a fully automatic system.
The control panel is designed to be simple and user-friendly.
At an ambient temperature of 32°C, it is equipped with a fan-cooled condenser capable of cooling from +35°C to +4°C in less than 3 hours.
Refrigerant gas: R404A.
Electrical system: 380V three-phase.
Phase protection relays are available against failures caused by voltage drops and surges.
Equipped with a 6 HP compressor.
The milk discharge valve is a DN40 chrome valve.
The weighing system is equipped with an electronic scale.
